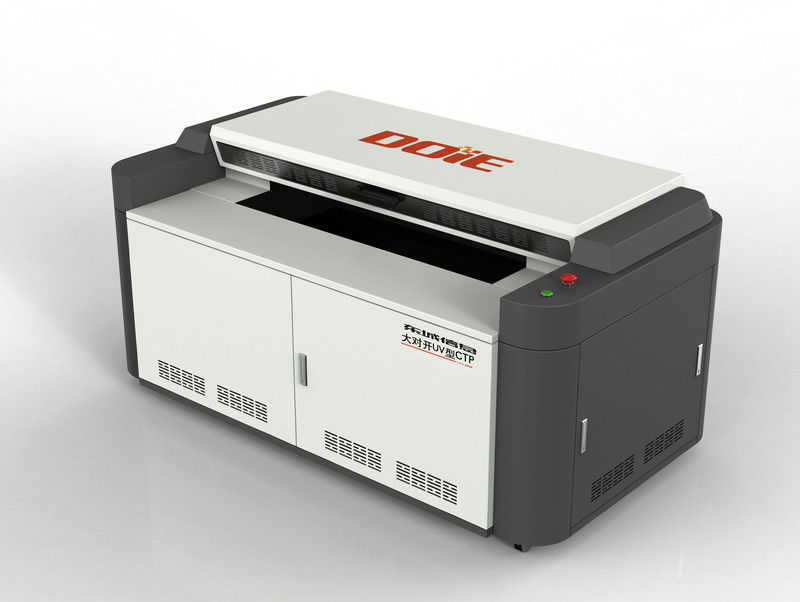

32 Channels CTCP Machine Automatic Loading UV CTP Plate Making Equipment

32 Channels CTCP Machine Automatic Loading UV CTP Plate Making Equipment

MOQ: 1
Price: Negotiation
Standard Packaging: Wooden box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: Anytime
Detail Information
Place of Origin
HANGZHOU CHINA
Brand Name
DOIE
Certification
ISO9001
Model Number
CTCP 32channels platemaking prepress machine
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Wooden box
Delivery Time:
45days
Payment Terms:
T/T
Supply Ability:
Anytime
High Light:

computer to plate printing

,

ctcp machines

Product Description



1. Name: CTCP 32 channels platemaking prepress machine

2. Application: Prepress Printing Equipment
3. Feature:
High Precision Dot, Automatic Loading Way external drum design



32 Channels CTCP Machine, Automatic Loading UV CTP Plate Making Equipment



Description:



DOIE UV-CTP uses special laser diode and external drum design, to ensure the biggest energy transfer efficiency and exposure precision.



DOIE UV-CTP 32 channels uses the most advanced and stable guide rail technology, using automatic loading way and 405nm laser diode, digital process workflow, high precision dot, low cost UV(CTcP) plates, reducing the cost.



We use reliable control circuity system.By using control method of negative feedback, the circuitry achieve constant-current control, DA output power adjust continuously, LD output follow control signal, which output pulse by using on-off mode, therefore the standby power is low.



Also with ultrahigh frequency MOS pipe and high speed operational amplifier made the voltage pulse rise and fall time on the LD shortest.





Specifications:



Model

X-0322U

Light Channels

32

Output Speed(P/h)

17

P size:1030mm×800mm

29

P size:510mm×400mm

Light Source

405 nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%~99%

Register Accuracy (mm)

<0.01

Plate Size (mm)

Max. 1160×940;Min. 450×320

Suitable Plates

Various UV-CTP(CTcP) plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃

Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz





Applications:



Worked in pre-press printing process, it can be used to connect with bridge and stacker to make up an integral pre-press workflow,which will improve production efficiency and reduce labour cost. UV-CTP can fit the conventional plate whose cost is lower than thermal plate. That is why UV-CTP will be the main stream pre-press equipment in future development.





Competitive Advantage:



1: Precise guiderail chassis. Manual entire scrape.

  • The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
  • The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision.
  • Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
  • Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.



2. Independent vacuum structure, effectively absorb various plates.

  • By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
  • According to different size of plate, adjust absorptive power, could achieve best printing effect.
  • Using negative pressure checking before printing, avoid the plate flying.
  • Using negative pressure checking in printing, avoid the plate flying.
  • Using negative pressure and prevent air leakage technology.



3. Continue feeding plate system, achieve automatic loading plate.

  • Using advanced belt conveying plate system.
  • Using mechanical head clip automatic positioner.
  • Using mechanical tail clip automatic positioner.
  • Using automatic negative pressure absorption technology.



4. High precision side-guide technology, improve printing repeatability precision.

  • Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
  • High precision side-guide technology, making the equipment running more stable.
  • According to the requirement, increase dynamic balance data automatically, make the production conveniently.
