| MOQ: | 1 set |
| Standard Packaging: | Wooden case |
| Delivery Period: | 15 days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 10 sets |

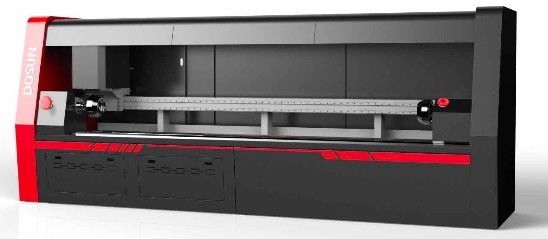

Digital Rotary Screen Engraver Equipment , Rotary Inkjet Engraving Machine 2200 / 3200 / 3600mm Breadth
Description:
DOSUN rotary engraver is a digital equipment of computer-to-screen (CTS), It prints design directly on coated nickel screen with special ink, and cure the resin with UV light. Comparing to traditional engraver, it saves film cost. DOSUN engraver makes the design head-end joint perfectly.
| 技术参数 Technical specifications | |||
| 规格型号Model | DRC2500C | DRC3000C | DRC3500C |
| 圆网尺寸 Max.Screen Size | 2500mm | 3000mm | 3500mm |
| 圆网花回 Repeat | 640mm(标准Standard) 640-1018(可选Optional) | ||
| 成像系统技术 Imagin System Techonology | DLP | ||
| 光斑尺寸Spot Size | 30/60mm | ||
| 激光单元 Laser Power | 10W,15W,20W,25W,30W | ||
| 光源类型 Laser Type | UV激光 UV laser | ||
| 调焦系统 Focus System | 焦距实时调节系统 real time focus control | ||
| 图像分辨率 Image Resolution | 254/300/360/508/600/720/762/1016/1270/2540 | ||
| 数据分辨率 Data Resolution | 12700dpi | ||
| 感光胶厚度 Thickness of Emulsion | 2-300μm | ||
| 文件格式 File Format | 1bit TIFF | ||
| 曝光时间 Exposing Time | 2.5min/m(花回Repeat640mm) | ||
| 数据接口 Interface | 千兆网口Gigabit Ethernet Adapter | ||
| 制冷方式 Cooling Type | 水冷Water Cooling | ||
| 设备尺寸 Dimesion | L3900mmxW1000mmxH1800mm | L4400mmxW1000mmxH1800mm | L4900mmxW1000mmxH1800mm |
| 设备净重 Net Weight | 1400KG | 1600KG | 1800KG |
| 工作条件 Working Conditions | 操作温度Temperature15-28℃,相对湿度 relative humidity 40-60% | ||
| 电源 Power | 单相220V,50/60Hz,1.0KW, single 220V, 50/60Hz, 1.0KW. | ||
| 压缩空气Compressed Air | 0.4Mpa--0.6Mpa | ||
