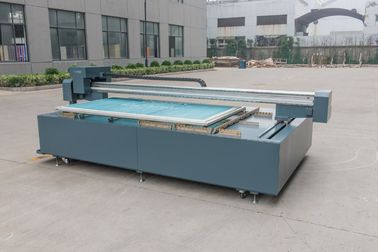

405nm Laser Diode UV Flatbed Laser Engraver Textile Engraving Machine

405nm Laser Diode UV Flatbed Laser Engraver Textile Engraving Machine

405nm Laser Diode UV Flatbed Laser Engraver Textile Engraving Machine
405nm Laser Diode UV Flatbed Laser Engraver Textile Engraving Machine
405nm Laser Diode UV Flatbed Laser Engraver Textile Engraving Machine
Product Details:
Place of Origin: China
Brand Name: DOSUN
Model Number: UV-F X*F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Payment Terms: T/T
Contact Now
Detailed Product Description
Model:: UV-F X*Y Resolution: 360/720/1440dpi
Imaging Light Source: 405nm Laser Diode Engraving Speed:: 8~15 Min/m2(Laser 32/48/64 Channels)
Acceptable File Format: TIFF Other Name:: Uv Flatbed Laser Engraver, Digital UV Laser Engraving System, Uv Laser Flatbed Engraver.
Net Weight: 1200kg Dimension: 3500mm×2200mm×1200mm
Power: 1.5KW/220V, 50Hz
High Light:

1440dpi Flatbed Laser Engraver


Textile Uv laser Flatbed Engraver


Digital UV laser engraving system

405nm Laser diode UVFlatbed laser Engraver , Flatbed Engraving System , Textile Engraving Machine



Model UV-F X*Y
Screen Size 1600mm×2600mm(Maximum)
Resolution 360/720/1440dpi
Registration Accuracy ±0.02mm
Imaging Light Source 405nm Laser diode
Engraving Speed 8~15 min/m2(Laser 32/48/64 Channels)
Acceptable File Format TIFF
Interface USB2.0
Power 1.5KW/220V, 50Hz
Dimension 3500mm×2200mm×1200mm
Net Weight 1200kg



Quick detail:

1, Model: UV-F X*Y

2, Resolution: 360/720/1440dpi

3, Imaging Light Source: 405nm Laser diode

4,  Engraving Speed: 8~15 min/m2(Laser 32/48/64 Channels)

5, Acceptable File Format: TIFF

6, Other name: Uv Flatbed laser engraver, Digital UV laser engraving system, Uv laser Flatbed Engraver.


Blue-Flatbed UV Laser Engraver


  • The UV technology of laser direct imaging is directly imaging on the surface of traditional UV sensitive emulsion. Because of don’t need film and ink, so the cost is low, and convenient, environmental protection.
  • DOSUN UV-FINATM Laser Engine: Integrating several high technologies, such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on, output precision 720dpi, can manufacture complex moiré patterns,
  • Using advanced high-power UV laser and fiber dot-matrix, BLUE-ROTARY UV Laser Engraver is the fastest in engraving industry.
  • By using constant temperature controlling, the machine can work for along time under the ordinary room temperature.
  • DOSUN PERFECTATM Hardware Platform: Dexterous, Solid, Accurate, Reliable. It is the crystallization of time and experience, and has several items of national monopolies.
  • Automatic focusing system can optional sets laser intensity, adjusting the balance of laser power by automatic, in order to achieve the best exposure efficiency, improve the using life of laser.


The characteristics

DOSUN UV-FINATM laser engine: It integrates many high technologies, such as high-power laser diode, 32-64-channel fiber coupling, optical power balance, constant temperature control by TEC, etc. The output resolution is 720dpi, which can produce complex Moire fringes. By using semiconductor constant temperature control, the machine can work at ordinary room temperature for a long time. The optical power balance system can optionally set the laser intensity and automatically adjust the balance of each laser power to achieve the best exposure efficiency and prolong the service life of the laser diode.
