| MOQ: | 1 set |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | T/T |
360 / 720 / 1440dpi UV Flatbed laser Engraver , Digital laser engraving system / machinery
Qucik detail:
1, Model: UV-F X*Y
2, Imaging Light Source: 405nm Laser diode
3, Resolution: 360/720/1440dpi
4, Engraving Speed: 8~15 min/m2(Laser 32/48/64 Channels)
5, Acceptable File Format: TIFF
6, Other name: Uv Flatbed laser engraver, Digital UV laser engraving system, Uv laser Flatbed Engraver.
Specification
|
Model |
UV-F X*Y |
|
Screen Size |
1600mm×2600mm(Maximum) |
|
Resolution |
360/720/1440dpi |
|
Registration Accuracy |
±0.02mm |
|
Imaging Light Source |
405nm Laser diode |
|
Engraving Speed |
8~15 min/m2(Laser 32/48/64 Channels) |
|
Acceptable File Format |
TIFF |
|
Interface |
USB2.0 |
|
Power |
1.5KW/220V, 50Hz |
|
Dimension |
3500mm×2200mm×1200mm |
|
Net Weight |
1200kg |

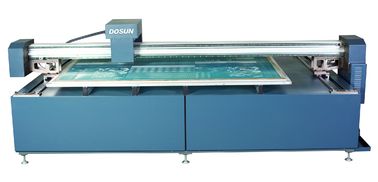

Blue-Flatbed UV Laser Engraver
The characteristics
DOSUN UV-FINATM Laser Engine: Integrating several high technologies, such as high-power laser diode, 32-64 channels fiber coupling, optical power balancing, constant temperature controlling by TEC and so on, output resolution 720dpi, can manufacture complex moire patterns.
By using semiconductor constant temperature controlling, the machine can work for a long time under the ordinary room temperature.
Optical power balancing system can optional sets laser intensity, adjusting the balance of each laser power automatically, in order to achieve the best exposure efficiency, extend the using life of laser diode.
