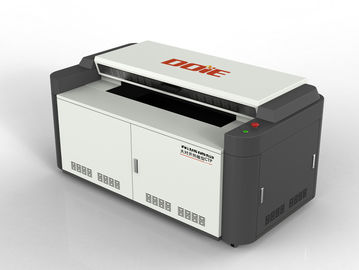

Computer To Plate Prepress Printing Equipment 32 / 48 / 64 Channels

Computer To Plate Prepress Printing Equipment 32 / 48 / 64 Channels

MOQ: 1
Price: Negotiation
Standard Packaging: Wooden box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: Anytime
Detail Information
Place of Origin
HANGZHOU CHINA
Brand Name
DOIE
Certification
ISO9001
Model Number
64channels 405nm laser diode prepress printing equipment CTcP X-0642U
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Wooden box
Delivery Time:
45days
Payment Terms:
T/T
Supply Ability:
Anytime
High Light:

prepress machine

,

prepress ctp

Product Description



CTP Plate Making Machine

32 / 48 / 64 Light Channels

17 / 23 / 29  P/h Output Speed



32 / 48 / 64 Channels Computer To Plate Prepress Printing Equipment





Description:



DOIE UV-CTP uses the most advanced and stable guide rail technology, using automatic loading way and 405nm laser diode, digital process workflow, high precision dot, low cost UV plates, reducing the cost.



DOIE UV-CTP uses special laser diode and internal drum design, to ensure the biggest energy transfer efficiency and exposure precision



DOIE Thermal-CTP uses the most advanced and stable V model guide rail fixed position technology, using automatic loading way and 830nm laser diode, made the high energy field value of thermal material development, high development quality, after baking , the thermal plate could prints about million times.



DOIE Thermal-CTP is full digital controlled technology, not only is a mature commercial products and the source of profits, but also to the prepress printing integration technology development which have the immeasurable influence and realistic significance.





Applications:



CTP platemaking machines generally divided into inside drum, the drum type, plate type, curve type four major categories. In the four types at present, the most use is the internal drum and the drum; The performance with most high-grade CTP platemaking machines are the drum type.

Digital workflow is integrated control the whole printing production process software system.

Recently, mainstream digital working flows in the market are all applied to DOIE-CTP series





Specifications:

Thermal-CTP



Model

X-0322T

X-0482T

X-0642T

Light Channels

32

48

64

Output Speed(P/h)

17

23

29

P size:1030mm×800mm

Light Source

830 nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%~99%

Register Accuracy (mm)

<0.01

Plate Size (mm)

Max. 1160×940;Min. 450×320

Suitable Plates

Various thermal ctp plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃

Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz





Specifications

UV-CTP



Model

X-0322U

X-0482U

X-0642U

Light Channels

32

48

64

Output Speed(P/h)

17

23

29

P size:1030mm×800mm

Light Source

405nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%~99%

Register Accuracy (mm)

<0.01

Plate Size (mm)

Max. 1160×940;Min. 450×320

Suitable Plates

Various uv-ctp,ctcp Plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃

Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz





Competitive Advantage:



1. Precise guiderail chassis. Manual entire scrape.

  • The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
  • The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision.
  • Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
  • Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.



2. Independent vacuum structure, effectively absorb various plates.

  • By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
  • According to different size of plate, adjust absorptive power, could achieve best printing effect.
  • Using negative pressure checking before printing, avoid the plate flying.
  • Using negative pressure checking in printing, avoid the plate flying.
  • Using negative pressure and prevent air leakage technology.



3. High precision side-guide technology, improve printing repeatability precision.

  • Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
  • High precision side-guide technology, making the equipment running more stable.
  • According to the requirement, increase dynamic balance data automatically, make the production conveniently.



4. Continue feeding plate system, achieve automatic loading plate.

  • Using advanced belt conveying plate system.
  • Using mechanical head clip automatic positioner.
  • Using mechanical tail clip automatic positioner.
  • Using automatic negative pressure absorption technology
