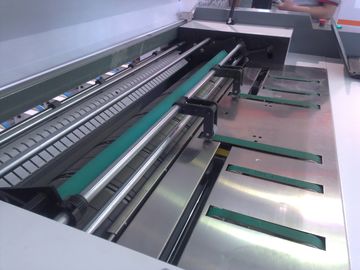

Computer To Conventional Plate Machine , Thermo Plate Making Machine

Computer To Conventional Plate Machine , Thermo Plate Making Machine

MOQ: 1
Price: Negotiation
Standard Packaging: Wooden box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: Anytime
Detail Information
Place of Origin
HANGZHOU CHINA
Brand Name
DOIE
Certification
ISO9001
Model Number
64channels 405nm laser diode prepress printing equipment CTcP X-0642U
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Wooden box
Delivery Time:
45days
Payment Terms:
T/T
Supply Ability:
Anytime
Highlight:

Computer To Conventional Plate Machine

,

ctp Thermo Plate Making Machine

Product Description


1. Name: computer to conventional plate machine of DOIE brand,CTP machine like CRON,AMKSY.
2. Application: Worked as plate making machine with laser diode exposing dot on plate,showing image on plate.
3. Feature: entirely scrap by hand for the guild rail to meet the highest precision in the world, 3 independent vacuum space design of the drum to avoid plate fly off. Also the 405nm laser diode ensure the good resource of laser.




Description:


The theory of CTcP named is starting from X-,channel decides the name also,the end of the name means the type,thermal machine is T,UV machine means U.For example,X-0322U means the 32channels laser diodes CTcP machine.DOIE company pride customer with processor,CTP machine,stacker,bridge,software. It achieves the integral workflow of prepress.
Manual scrap by hand of the guild rail promise the highest precision. Lead screw structure is very easy to operate,aslo easy to clean and maintain.
DOIE CTP machine ueses start sensor and side guild technology together to ensure the the loading plate center position,meanwhile to improve the precision.
DOIE CTP machine has tested most of CTP or CTcP plates from market, it can meet most plate demand.On the basis of the widely choosing of plate, customer can easily reduce the cost and increase profit.




Specifications:



Model

X-0322U

Light Channels

32

Output Speed(P/h)

17

P size:1030mm×800mm

23

P size:510mm×400mm

Light Source

405 nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%~99%

Register Accuracy (mm)

<0.01

Plate Size (mm)

Max. 1160×940;Min. 450×320

Suitable Plates

Various UV-CTP(CTcP) plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)
Unloading:Automation
Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃
Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz



Applications:


Worked as plate maker printing area,useing 405nm laser diode which made in JAPAN for the core part of machine. To meet the demand of different customers,DOIE company invent the bridge and stacker to make one integral prepress printing workflow. This integral workflow can easily and effectively to reduce cost of customer.




Competitive Advantage:


1: Guild rail chasis with most highest precision,V-Groop scrap by hand scrap entirely.

· The chassis is integral becoming one with the guild rail,effectively to imporve the stability and wear-resistance.

· The guiderail precision is very high wich can achieve 1-3μm/m,effectively ensure printing precision.

· Scraping guiderail is made by cast-iron material of the guiderail achieves more stability, there is lubricant grease on the guilderail surface to make a protective role;

· Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.

2. Totally Independent vacuum drum structure, effectively absorb various plates,avoiding plate off.

· By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.

· According to different size of plate, adjust absorptive power, could achieve best printing effect.

· Using negative pressure checking before printing, avoid the plate flying off.

· Using negative pressure checking in printing, avoid the plate flying off.

· Using negative pressure and prevent air leakage technology.

3. Continue feeding plate system, automatically loading and unloading system.

· Advanced belt conveying plate system achieve continue feeding.

· Mechanical head clip automatic positioner is more stable and easy to control.

· Using mechanical tail clip automatic positioner.

· Automatic negative pressure absorption technology.

4. High precision side-guide technology, improve printing repeatability precision.

· Fusing advanced start sensor checking technology and side-guide technology together to improve the printing repeatability precision.

· High precision side-guide technology, making the equipment running more stable.

· According to the requirement, increase dynamic balance data automatically, make the production conveniently.
