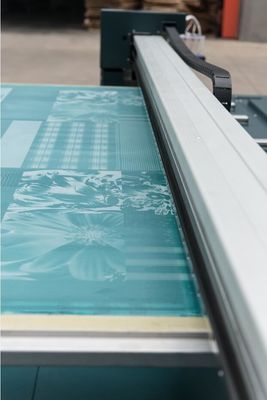

High Efficiency Computer To Screen Machine UV CTS Smart Engraving System

High Efficiency Computer To Screen Machine UV CTS Smart Engraving System

By using UV-FINATM Laser Engine technology, sensitive emulsion, engraving technology is basically same with the traditional technology, improving the precision and efficiency.

Charateristics

• The UV technology of laser direct imaging is directly imaging on the surface of traditional UV sensitive emulsion. Because of don’t need film and ink, so the cost is low, and convenient, environmental protection.
• DOSUN UV-FINATM Laser Engine: Integrating several high technologies, such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on, output precision 720dpi, can manufacture complex moiré patterns,
• Using advanced high-power UV laser and fiber dot-matrix, BLUE-ROTARY UV Laser Engraver is the fastest in engraving industry.
• By using constant temperature controlling, the machine can work for along time under the ordinary room temperature.
• DOSUN PERFECTATM Hardware Platform: Dexterous, Solid, Accurate, Reliable. It is the crystallization of time and experience, and has several items of national monopolies.
• Automatic focusing system can optional sets laser intensity, adjusting the balance of laser power by automatic, in order to achieve the best exposure efficiency, improve the using life of laser.

Ambience

• ·Temperature: 5～40℃
• ·Humidity: 30～80% (Non-condensing)
• ·Lighting: yellow light
• ·Electric Resistance: ≦4Ω
• ·Power: 1.5KW/ 220V, 50HZ

Drawing, Color Separation, Output Process

Advange

• UV laser engraving is a “ultimate” technology
• UV laser engraving use semiconductor laser, wavelength is 405nm, in the spectroscopy, it calls Ultra-Violet, so we also call it blue laser. Now, the engraving sensitive emulsion of textile print, paper print and PCB all use UV sensitive emulsion, the most wavelength of engraving sensitive emulsion as same as UV sensitive emulsion’s, so engraving technology will not be replaced.
• UV laser engraving technology is a fast engraving technology.The speed of engraving is depending on size of power and number of ray path. DOSUN UV-FINA^TMlaser engine can achieve 64 paths, which provide 16 paths for print engraving. For example, the speed of 640mm/1800mm ROTARY UV Laser Engraver can achieve 68min. /m.
• UV laser engraving technology is a precision engraving technology.
• UV laser engraving is a real photo etching technology, using on the paper offset print, DOSUN UV-FINA^TMLaser Engine can achieve 2400dpi, making the line of 0.01mm, showing the net-point of 1%~99%, it can provide the 720dpi for print engraving, on the “continuing” neurogen ( offset plate), it can manufacture the line of 0.035mm. Because rotary engraving isn’t “un-continuing” neurogen, now, the highest mesh number is 195 meshes, in theory, we can achieve the smallest line for 0,13mm, in the manufacturing, we usually use 125 meshes, in theory, and we can achieve the smallest line for 0.21mm (Data for STORK Company). So, the output precision of DOSUN BLUE-ROTARY UV Laser Engraver is better than rotary screen engraver’s. It can satisfy any precision for output size.
• UV laser engraving is a low carbon, environment protection technology.

Low power: 1.5

No consumable items: Do not need film, ink, wax

Low cost: the function of sensitive emulsion is basically same with traditional, the price also basically same.

• UV laser engraving is a “friendly” engraving technology.The manufacture process is not only as same as traditional process, but also more convenient. Basing on the design principle of “convenient, practical, reliable, advanced”, in the process of engraving image, the equipment provides monitor display, operation help and so on. By using the software and hardware, it all can reflect a “friendly” attitude to operational workers.
• With highspeed USB2.0 interface. DOSUN engraving programecan easily install and operate like a printer with the plug and play technology.
•

Competitive Advantage:

1. The whole machine including software, Dosun developed by ourselves. No need any other support. (image change the software from some other company , you will find it is difficult to operate, and dosun is very easy)
2. Service team, we have mature service team in China. Also our local service support from Agent. Any time you meet problem, we reach to you in time.
3. Use of high-precision rack transmitting design, fast return back to the start bit after finish engraving. Easy erection, unlimited screen length.
4. Lens which developed by Academic Divisions of the Chinese Academy sciences. Balancing guild rail, make sure from 400mm t- 2500mm, totally automatic adjust. And mistake between 1 to100mm. (As we know, Image cannot print two dot. Their software will bigger the dot when print out. So such kind of fine designs they cannot print well)
5. Cover is optional. Most of my clients like the one without cover, which is easily operating.
6. And all the important parts we use famous brand in the world, if such low price, they must just use Chinese local brand.
7. Adopting parallel guide rail, professional assembly measurement and control, ensure straightness tolerance of rail within 20um, and ensure high imaging quality.
8. 360,720, dpi, optional.
9. Paths of diode 32,48,64,128 optional.
10. High precision encoder from Japan.
