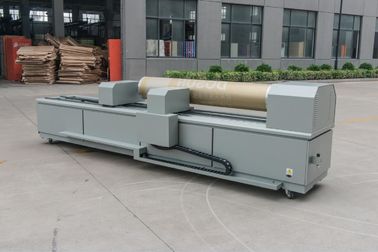

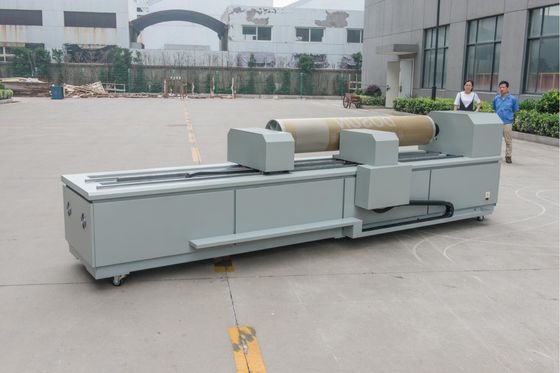

    High Precision Computer To Screen Machine BRC 2500 BRC 3000 BRC 3500





    DOSUN BLUE-ROTARY UV Laser Engraver is a new generation of CTS (computer to screen) equipment. By using DOSUN UV-FINATM Laser Engine, it can directly image on the sensitive layer.

    By using UV-FINATM Laser Engine technology, sensitive emulsion, engraving technology is basically same with the traditional technology, improving the precision and efficiency.





    Feature:

    • Using advanced high-power UV laser and fiber dot-matrix, BLUE-ROTARY UV Laser Engraver is the fastest in engraving industry.
    • UV laser engraving is a low carbon, environment protection technology.
    • No consumable items: Do not need film, ink, wax
    • UV laser engraving is a “friendly” engraving technology.The manufacture process is not only as same as traditional process, but also more convenient. Basing on the design principle of “convenient, practical, reliable, advanced”, in the process of engraving image, the equipment provides monitor display, operation help and so on. By using the software and hardware, it all can reflect a “friendly” attitude to operational workers.

    Specification

    Model BR2500 BR3000 BR3500
    Screen Breadth 2500mm 3000mm 3500mm

    Screen Repeat 640mm(standard)

    820mm/914mm/1018mm(optional)

    Resolution 360/720dpi (300/600dpi;254/508dpi customizable)
    Registration Accuracy ±0.02mm
    Imaging Light Source 405nm laser diode LD
    Engraving Speed 6~8min./m(640mm)
    Acceptable File Format BMP/TIFF
    Interface USB
    Power 1.5KW/220V, 50Hz

    Dimension 3950mm×750mm×1220mm(BR2500)

    4450mm×750mm×1220mm(BR3000)

    4950mm×750mm×1220mm(BR3500)

    Net Weight 1000kg(BR2500) 1100kg(BR3000)

    1 200kg (BR3500)



    Process

    Wash screen→ Mixing glue→ reshaping→ coating→ Low temperature baking→ laser Engraving→ Developing→ Retouching screen→ High temperature baking
