Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank

Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank

  • Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank
Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank
Product Details:
Place of Origin: China
Brand Name: Dosun sunflower
Model Number: 180BT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 60 days
Payment Terms: T/T
Contact Now
Detailed Product Description
High Light:

textile printing machine

,

flatbed digital printing machine

Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank





Features of SUN FLOWER-180—Digital Textile Ink-jet Printer:

1.Suitable For Different Kinds of Fabrics. Proven successful Belt-feed System

With Spreader roll,Dancer Roll For Correct Fabric Feed.

2.Suitable For Different Fabric Thickness.

The Height of Ink-jet Head With Three steps: 1.2mm/2.2/3.2mm

The Height of Head Bridge changeable From 0 To 20 mm

3.Integrating Unwind, Rewind, Feed, Print, Dryer In One.

4.High Printing Speed ,Makes Small Production Possible : 28㎡/h

5.Available With All Types of Ink: Acid, Reactive, Disperse, Pigment

6.Adopting Double Six Color, Printing Fabrics With Wider Color Area

7.Super-Wide Ink-Jet Head:  360 Nozzles Per Color With 25.4mm Width Adjustable Drop-On Technique:According to different types of Outputting, It can produce three different sizes of drops with micron precision.

8.Hi-Speed Data Transmitting and Processing: 100 Base-TX Network

9.The Powerful RIP Software:RIP While Output, High Printing Efficiency;Precise Color Management;

Compatible With Postscript Language, Photoshop, Illustrator, Freehand,XPress Together With Other Image-Processing Software;Accepted File Format: TIFF,PDF1.4,JPEG,DGS2.0,EPS and PS.





Description:

SUNFLOWER-180Bt,a digital textile printer, is developed by DOSUN company with great efforts and great capital invested.

Based on his strong ability and rich experience in ink-jet technology, DOSUN will supply full support in textile ink-jet print for his users.





Specifications:




Specifications of SUN FLOWER-180—Digital Textile Ink-jet Printer:

Printing Mode

Micro Piezo-eletric Ink-jet Mode

Printing Resolution

Max.: 1440dpi,Optional: 1440×1440dpi,720×1440dpi,720×720dpi,360×720dpi,360dpi×360dpi

Printing Speed

28㎡/h (at 360×360dpi resolution)

Max.Printing  Width

1800mm

Max. Fabric Width

1840mm

Ink Tank Capacity

220CC±5CC

Color

Double Six Color: C M Y K + Lc Lm Or: C M Y K + Or Gr

Ink Type

Acid, Reactive, Disperse, Pigment

Energy  Consumption

Standby Mode: ≤80W,Printing Mode: 600W,Heating: 2 Sets×1500W

Power Supply

Single Phase+Earth,18A/220Vac ±10% , 50/60Hz

Operating Environment

18~30℃;35~80% RH (Non-condensing)

Machine  Dimension

3200(L)×1410(W)×1200(H) mm

Weight

650 ㎏







Competitive Advantage:

Noiseless operations

Low power consumption

Easy installation

High reliability

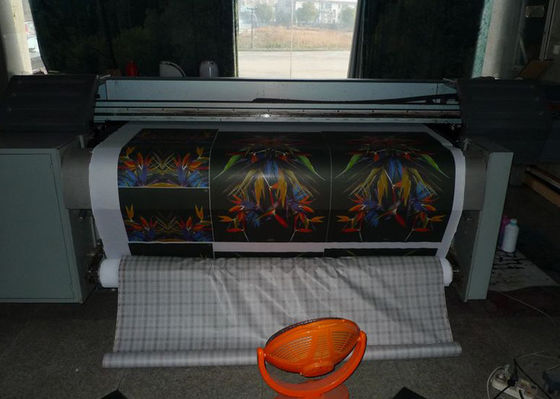

Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank 0

Digital Textile Belt Printer Printing Equipment With 1800mm Printing Width, 220CC Ink Tank 1
