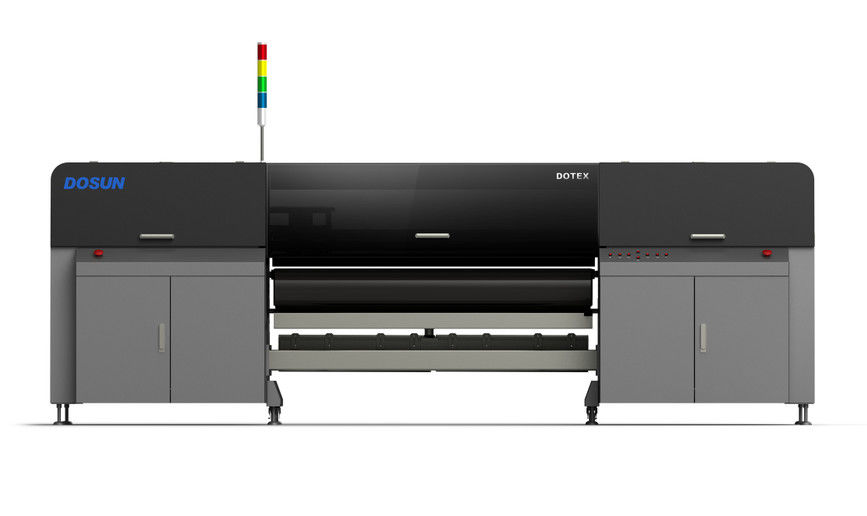

Belt Type Inkjet Textile Printers , Digital Textile Belt Printer With Powerful RIP Software

Belt Type Inkjet Textile Printers , Digital Textile Belt Printer With Powerful RIP Software

MOQ: 1 set
Standard Packaging: Wooden case
Delivery Period: 60 days
Payment Method: T/T
Detail Information
Place of Origin
China
Brand Name
Dosun sunflower
Model Number
180BT
Minimum Order Quantity:
1 set
Packaging Details:
Wooden case
Delivery Time:
60 days
Payment Terms:
T/T
High Light:

belt type digital textile printer

,

textile printing machine

,

belt type inkjet textile printer

Product Description



Digital Textile Belt Printer With Powerful RIP Software , Belt Type Inkjet Textile Printers



Quick detail

1,  Printhead: Industrial Independent-Wall Printhead, 4 Grayscale Levels,

 Variable Ink Drops 15PL, 30PL, 45PL.

2, 8-Colors: C, M, Y, K plus 4 Spot-Colors, Standard Set: K, C, M, Y, O, R, B, G(Gray), Support 48 spot-colors

Double 4 -Colors: C,M,Y,K , Two Kinds of Same or Different Types of Ink

3, Resolution Mode (dpi): 360*360,360*540,720*360,720*540,720*720,720*1080

4, Applicable Ink: Textile Reactive & Acid, & Disperse , & Pigment Ink

5, Collection System: PTC Dryer

6, System Control Software: Dotex Print





 DOTEX Specifications of DOTEX



Product Model

180B08

/320B08

180B16

/320B16

180B32

/320B32

180B64

/320B64

Max. Printing Breadth

1800

/3200

Max. Printing Speed(m2/h)

(under 360x360 dpi )

   60

   120

  240

 480



Printhead

Industrial Independent-Wall Printhead, 4 Grayscale Levels,

 Variable Ink Drops 15PL, 30PL, 45PL.

Color Mode

8-Colors: C, M, Y, K plus 4 Spot-Colors, Standard Set: K, C, M, Y, O, R, B, G(Gray), Support 48 spot-colors

Double 4 -Colors: C,M,Y,K , Two Kinds of Same or Different Types of Ink

  Resolution Mode (dpi)

360*360,360*540,720*360,720*540,720*720,720*1080

Printing Mode

Unidirectional / Bidirectional

Applicable Ink

Textile Reactive & Acid, & Disperse , & Pigment Ink

Ink Tank Capacity (L)

5/ colors

Fabric Thickness (mm)

0-50 Stepless Adjustable

Ink Supply System

Negative Pressure Ink Supply

Print Head Maintenance

Channels Independent Purging&Automatic Wetting

&Automatic Wiping&Spitting&Tickling

Belt System

Automatic Deviation Correcting/ Automatic Cleaning/ Warm Wind or Nature Wind Dehumidification

Feeding System

Tension Control&Expanding& Guiding&Sticking of Fabric

Collection System

PTC Dryer

Data Interface

RJ-45

Acceptable File Format

.ps ,.prn,.pdf,.eps,.tif,.jpg,.jpeg,.gif,.png

.psd,.bmp,.pcx,.tga,.ppm,.sid

RIP Software

 Wasatch/Photoprint(optional)

System Control Software

 Dotex Print

Operating System

Windows7

Control Working Station

 Dell Precision

 Power Supply

 220V/50Hz

 Power Consumption

 The Printing System: 2KW/ Cleaning&Drying System: 0-50 KW (Adjustable)

Ambient

Temperature: 15.C-35.C; RH: 60%-70%(non-condensing)

Machine Dimension

L*W*H  (mm)

The Printing Unit: 4500*1800*1600/5900*1800*1600

The Feeding Unit: 2400*600*750/3800*600*750

The collection Unit: 2700*1050*900/4100*1050*900

Net Weight (Kg)

The Printing Unit: 1200/The Feeding Unit: 200/The Collection Unit: 300

Package

Outside: Wooden Box/ Inner:Waterproof Plastic Cover







Fine & Fit & Firm & Flow & Far & Friendly

 DOTEX embedded DOSUN’s 6F concept about digital textile printing

Fine: DOTEX is meticulous at every unit, every part and every dot, with decades of experience in R&D, manufacturing, service of textile digital printing equipment.



Fit: DOTEX serial digital textile inkjet printer consists of 8 models with different printing speed from 60m2/h to 480m2/h, and different width from1.8metres to 3.2metres, which will fully meet various needs of proofing, short-run printing, mass production in garments and home textile.



Firm:  DOTEX designed and manufactured based on the related standards of Machine tool and textile industry. It is firmly industry equipment, which inherits DOSUN’s commitment of “Reliability Supreme”.



Flow: DOSUN FLOWTM digital inkjet printing technological process service data will serve our customers based through DOTEX, which includes pattern dispose, color management, ink &coating project, net-proofing, process conditions, etc.



Far: DOTEX developed all the core technology independently, designing all the equipment’s structure and system architecture using modularizing method, integrating the advanced software technology, data communication technology, control technology and precision devices and accessories. So we are capable of tackling any problem you might have in real production. Actually, we are expanding textile product field, creating extra value of textile products.  DOTEX will take you go farther in digital textile world.



Friendly     DOTEX has its own unique characteristics in convenient operation, easy maintenance and energy saving, reflecting a friendly relationship with human and environment. DOTEX, it’s from DOSUN, hopes to keep a favorably and harmoniously cooperative relationship with fellow enterprises as always, and make a  colorful future of digital textile printing together.





The features of DOTEX inkjet textile printer:



a)         Integrating feeding, printing, collection as one complete set;



b)        Adjustable energy consumption of fabric & belt drying based on the printing speed and the fabric used;



c)         Industrial print head, with independent-wall construction&4grayscale levels

&Changeable ink drop, be suitable for any kinds of textile aqueous ink.



d)          Changeable color mode



8-colors mode: C, M, Y, K plus 4 spot- colors, the software support 48 spot-colors. That meets with the multiple spot -color needs of textile printing;



Double 4-colors mode: C, M, Y, K with two kinds of same or different types of ink

Available---meets some special textile printing.





Platform&module design of mechanical construction, which matches multiple kinds of special textile printing. For instance, could realize the design positioning (e.g.: cross-stitch products) by loading CCD camera system.



Stepless changeable the distance between printhead and printing table within 50mm, suited for different thickness of fabrics and printing mode (e.g.: piece printing);



Integrated automatic systems such as run-belt deviation correcting, belt cleaning& drying, fabric feeding expanding, and so on, suitable for high-speed mass production;



Based on the feedback-control technology, the system could real-time control of the printhead status according to the working temperature and the feature of ink;

And equipped with automatic printhead wetting&8 ink-channels independent purging

 & degassing system;

Which expand the compatibility of ink, enhance the environmental adaptability, save the ink consumption effectively and increase the durability of printhead, guarantee the stability and achromatism in production.



Isolated double-channels communication control system; use GBE fiber to support image data transmission; guarantee the transmission stability of high-speed data and the control signal of the machine in workshop.



DOTEX PRINT control system software based on latest user-interface WPF from Microsoft, which effectively meets the customized demands, such as production &cost & order &process management, etc.
