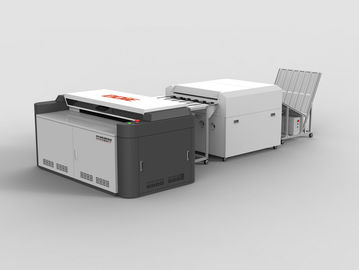

Motor Mechanical Structure UV-CTP / CTcP Computer To Plate Machine

Motor Mechanical Structure UV-CTP / CTcP Computer To Plate Machine

MOQ: 1
Price: Negotiation
Standard Packaging: Wooden box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: Anytime
Detail Information
Place of Origin
HANGZHOU CHINA
Brand Name
DOIE
Certification
ISO9001
Model Number
CTCP 32channels platemaking prepress machine
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Wooden box
Delivery Time:
45days
Payment Terms:
T/T
Supply Ability:
Anytime
High Light:

platemaking machine

,

ctcp machines

Product Description

1. Name: UV-CTP/CTcP computer to plate machine with high speed,motor mechanical structrue

2. Application: Prepress Printing Area
3. Feature:  Totoal separate temperature control system for laser

High stability laser promise 1-2 broken  per year

Unique independent  vaccum space structure design for external drum

Big size drum can print smallest plate size 450mm*320mm

Description: DOIE prepress machine is more and more popular in the world.As one of few CTcP professional manufacturers in china, DOIE is dedicated to develop mature and perfect technology for CTcP,by Octobor 2013,DOIE successfully update the separate temperature control system for laser to control laser temperature adjustment automatically.

As everybody knows, CTcP is mature on technology and quality,the biggest advantage of DOIE machine is no bunding promotion with plate,,customer  can choose

the plate they need to save cost and energy.





Specifications:



Model

X-0322U

Light Channels

32

Output Speed(P/h)

17

P size:1030mm×800mm

29

P size:510mm×400mm

Light Source

405 nm Laser Diode

Output Resolution (dpi)

2400

Dot Reproduction

1%~99%

Register Accuracy (mm)

<0.01

Plate Size (mm)

Max. 1160×940;Min. 450×320

Suitable Plates

Various UV-CTP(CTcP) plates

Plate Thickness (mm)

0.15~0.30

Plate Loading and Unloading

Loading:Automation(Standard Set)

Unloading:Automation

Vacuum Fixation

Plate Position Accuracy (mm)

0.2

Plate Balance

Automatic Balance

Data Interface

USB,1000Mbit/s

Ambient

Temperature 25℃±3℃

Humidity 20~80%(Non-condensing)

Machine Dimension (mm)

L2200×W1100×H1050

Net Weight (kg)

1500

Power Supply

≤6KW/220V±5%,50/60Hz



Applications:  Printing house,printing industry always perchase prepress machine like  CTP mahine used with Auto loader,bridge,processor,stacker to be  integral digital press workflow. And CTP is still the main flow prepress machine in this area.



Competitive Advantage:



1: Precise guiderail chassis. Manual entire scrape.

  • The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
  • The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision.
  • Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
  • Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.



2. Independent vacuum structure, effectively absorb various plates.

  • By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
  • According to different size of plate, adjust absorptive power, could achieve best printing effect.
  • Using negative pressure checking before printing, avoid the plate flying.
  • Using negative pressure checking in printing, avoid the plate flying.
  • Using negative pressure and prevent air leakage technology.



3. Continue feeding plate system, achieve automatic loading plate.

  • Using advanced belt conveying plate system.
  • Using mechanical head clip automatic positioner.
  • Using mechanical tail clip automatic positioner.
  • Using automatic negative pressure absorption technology.



4. High precision side-guide technology, improve printing repeatability precision.

  • Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
  • High precision side-guide technology, making the equipment running more stable.
  • According to the requirement, increase dynamic balance data automatically, make the production conveniently.
