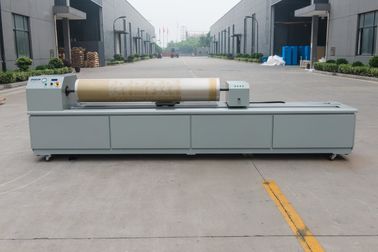

Uv Technology Computer To Screen Rotary Engraving Machine Including Software

Uv Technology Computer To Screen Rotary Engraving Machine Including Software

    • Uv Technology Computer To Screen Rotary Engraving Machine Including Software
    • Uv Technology Computer To Screen Rotary Engraving Machine Including Software
    • Uv Technology Computer To Screen Rotary Engraving Machine Including Software
    • Uv Technology Computer To Screen Rotary Engraving Machine Including Software
  • Uv Technology Computer To Screen Rotary Engraving Machine Including Software

    Product Details:

    Place of Origin: CHINA
    Brand Name: DOSUN
    Certification: ISO9000
    Model Number: BRC 2500 BRC 3000 BRC 3500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SETS
    Packaging Details: Wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 sets
    Contact Now
    Detailed Product Description
    Material: Iron Model: BRC 2500
    Repeat: 640 Standard (customized) Accuracy: ±0.02mm
    Interface: USB Power: 1.5KW/220V, 50HZ



    Uv Technology Computer To Screen Rotary Engraving Machine Including Software



    Product components



    ·UV Laser: Japan

    ·Grating encoder: Japan

    ·Reducer: Germany

    ·Servo motor: Japan

    ·Lead rail: Taiwan



    Feature:

    • Using advanced high-power UV laser and fiber dot-matrix, BLUE-ROTARY UV Laser Engraver is the fastest in engraving industry.
    • UV laser engraving is a low carbon, environment protection technology.
    • No consumable items: Do not need film, ink, wax
    • UV laser engraving is a “friendly” engraving technology.The manufacture process is not only as same as traditional process, but also more convenient. Basing on the design principle of “convenient, practical, reliable, advanced”, in the process of engraving image, the equipment provides monitor display, operation help and so on. By using the software and hardware, it all can reflect a “friendly” attitude to operational workers.

    Specification

    Model BR2500 BR3000 BR3500
    Screen Breadth 2500mm 3000mm 3500mm

    Screen Repeat 640mm(standard)

    820mm/914mm/1018mm(optional)

    Resolution 360/720dpi (300/600dpi;254/508dpi customizable)
    Registration Accuracy ±0.02mm
    Imaging Light Source 405nm laser diode LD
    Engraving Speed 6~8min./m(640mm)
    Acceptable File Format BMP/TIFF
    Interface USB
    Power 1.5KW/220V, 50Hz

    Dimension 3950mm×750mm×1220mm(BR2500)

    4450mm×750mm×1220mm(BR3000)

    4950mm×750mm×1220mm(BR3500)

    Net Weight 1000kg(BR2500) 1100kg(BR3000)

    1 200kg (BR3500)



    Process

    Wash screen→ Mixing glue→ reshaping→ coating→ Low temperature baking→ laser Engraving→ Developing→ Retouching screen→ High temperature baking



    Compare to other brand

    Compare to Image and any other brand in China

    • The whole machine including software, Dosun developed by ourselves. No need any other support. (image change the software from some other company , you will find it is difficult to operate, and dosun is very easy)
    • Service team, we have mature service team in China. Also our local service support from Agent. Any time you meet problem, we reach to you in time.
    • Use of high-precision rack transmitting design, fast return back to the start bit after finish engraving. Easy erection, unlimited screen length.
    • Lens which developed by Academic Divisions of the Chinese Academy sciences. Balancing guild rail, make sure from 400mm t- 2500mm, totally automatic adjust. And mistake between 1 to100mm. (As we know, Image cannot print two dot. Their software will bigger the dot when print out. So such kind of fine designs they cannot print well)
    • Tailstock with manual and electric, default electric.
    • And all the important parts we use famous brand in the world, if such low price, they must just use Chinese local brand.
    • Repeat choice between 400mm to 2500mm, integrate all in one. With lens safe anti-collision system, intelligently identify current repeat, make sure proper printing.
    • Adopting parallel guide rail, professional assembly measurement and control, ensure straightness tolerance of rail within 20um, and ensure high imaging quality.
    • Rotate servo motor or general asynchronism motor, wide speed range, test with thermal pater.
    • Water cooling and semiconductor cooling system, optional.
    • 360,720,1440,508,1016 dpi, optional.
    • Paths of diode 16,24,32 optional.
    • High precision encoder from Japan.
