| MOQ: | 1 set |
| Standard Packaging: | Wooden case |
| Delivery Period: | 15 days |
| Payment Method: | T/T |
| Supply Capacity: | 10 sets |

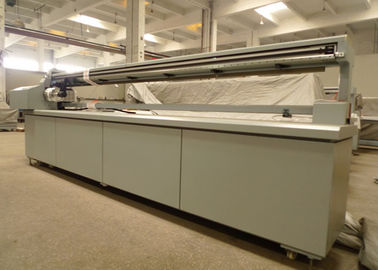

360DPI / 720DPI Rotary Screen Engraver , High Speed Rotary Inkjet Engraving machine
Specifications:
The Specification of DOSUN Rotary Inkjet Engraver | |||
Model | DOSUN-2200R | DOSUN-3200R | DOSUN-3600R |
Screen breadth | 2200 | 3200 | 3600 |
Screen repeat | 641mm/820mm/914mm/1018mm Optional | ||
Resolution | 360DPI/720DPI | ||
Repeated accuracy | ±0.02mm | ||
Scan motiom | Servo motor | ||
Model of print head | Piezoelectricity | ||
Nozzles of inkjet head | 672 | ||
Engraving speed | 10～11 Min./m² | ||
UV-exposing | Integrated automatic exposure system(1KW/220V) | ||
Acceptable file format | BMP/TIFF | ||
Temperature | 20～30℃ | ||
Humidity | 55～80% | ||
Description:
DOSUN rotary engraver is a digital equipment of computer-to-screen (CTS), It prints design directly on coated nickel screen with special ink, and cure the resin with UV light. Comparing to traditional engraver, it saves film cost. DOSUN engraver makes the design head-end joint perfectly.
The Characteristics:
◆ High speed inkjet printhead.
◆ The printhead makes up 7 group nozzles, each group contains 96 nozzles.
◆ DOSUN engraver has a static balanced ink supply system, and this insures the ink does not shake in working, so the ink pressure inside the printhead keep stable . It will enhance the engraving quality.
◆ DOSUN ink-supply system nearly need no maintenance.
◆ DOSUN engraving software supports file in single color. Many other engravers only support file in black, and the color file must be changed into black file.
◆ With high precision and long life reducer, DOSUN engraver makes the step by step joints almost
Application:
Rotary printing
Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliability
Video
|
|
