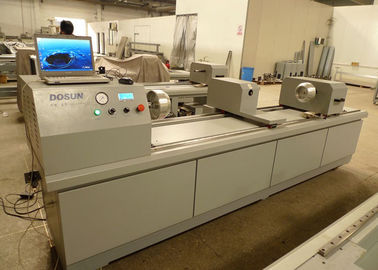

Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth

Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth

    • Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth
    • Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth
    • Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth
    • Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth
  • Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth

    Product Details:

    Place of Origin: China
    Brand Name: DOSUN
    Certification: ISO9000
    Model Number: 2200; 3000; 3500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 sets
    Contact Now
    Detailed Product Description

    Blue Rotary UV Laser Engraver Equipment, Textile Engraving Machine 2200mm / 3500mm Screen Breadth



    Description:

    DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides  revolutionary  power for finer screen engraving.

    DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN  engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.

    DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.





    Screen Engraving flow:

    Coating—low-temperature oven—laseren graving—developing—testing—

    high-temperature oven—end ring—end product





    Specifications:

    Model

    BR2200  BR3500

    Screen Breadth

    2200mm  3500mm

    Screen Repeat

    640mm(Standard)

    820mm/914mm/1018mm(Optional)

    Resolution

    360/720dpi   (300/600dpi;25/508dpi)

    Repeated Accuracy

    ±0.02mm

    Imaging Light Source

    405nm  LD

    Engraving Speed

    6~8min./m(640mm)

    Acceptable File Format

    BMP/TIFF

    Ambient

    Temperature:5~40℃

    Humidity:30~80%(Non-condensing)

    Lighting:Yellow light

    Power

    1.5KW/220V, 50Hz

    Machine Dimension

    3650mm×750mm×1220mm(BR2200)

    4850mm×750mm×1220mm(BR3500)

    Weight

    900kg(BR2200) 1200kg(BR3500)





    Competitive Advantage:

    Noiseless operations

    Low power consumption

    Easy installation

    High reliabilit
