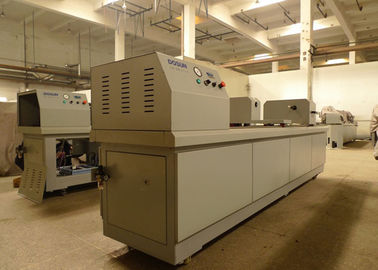

Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

    • Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm
    • Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm
    • Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm
    • Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm
  • Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm

    Product Details:

    Place of Origin: China
    Brand Name: DOSUN
    Certification: ISO9000
    Model Number: 2200; 3000; 3500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wooden case
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 sets
    Contact Now
    Detailed Product Description
    High Light:

    rotary laser engraving

    ,

    laser cutting machine

    Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

    Description:
    DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides  revolutionary  power for finer screen engraving.
    DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN  engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.
    DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.


    Screen Engraving flow:
    Coating—low-temperature oven—laseren graving—developing—testing—
    high-temperature oven—end ring—end product


    Specifications:


    Model

    BR2200  BR3500

    Screen Breadth

    2200mm  3500mm

    Screen Repeat

    640mm(Standard)
    820mm/914mm/1018mm(Optional)

    Resolution

    360/720dpi   (300/600dpi;25/508dpi)

    Repeated Accuracy

    ±0.02mm

    Imaging Light Source

    405nm  LD

    Engraving Speed

    6~8min./m(640mm)

    Acceptable File Format

    BMP/TIFF

    Ambient

    Temperature:5~40℃
    Humidity:30~80%(Non-condensing)
    Lighting:Yellow light

    Power

    1.5KW/220V, 50Hz

    Machine Dimension

    3650mm×750mm×1220mm(BR2200)
    4850mm×750mm×1220mm(BR3500)

    Weight

    900kg(BR2200) 1200kg(BR3500)



    Competitive Advantage:
    Noiseless operations
    Low power consumption
    Easy installation
    High reliability
